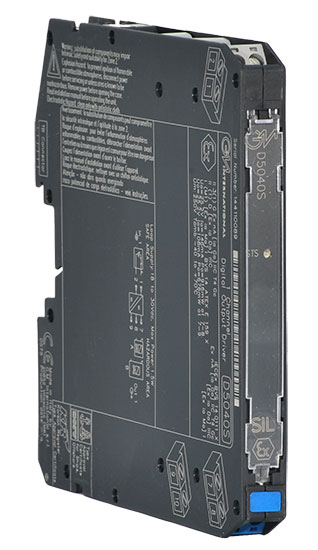

مشخصات و کاربرد ایزولاتور بریر مدل D5049S شرکت GMI
درایور خروجی دیجیتال تغذیهشونده از باس (Bus-Powered Digital Output Driver) مدل D5049 یک ماژول مناسب برای کاربردهایی است که در سیستمهای مرتبط با ایمنیِ صنایع پرخطر به سطح SIL 3 نیاز دارند.
این ماژول میتواند با استفاده از سیگنالهای کنترلی موجود در منطقه ایمن (Safe Area)، تجهیزاتی مانند موارد زیر را در منطقه خطرناک (Hazardous Area) راهاندازی کند:
- شیرهای برقی (Solenoid Valves)
- آلارمهای نوری (Visual Alarms)
- آلارمهای صوتی (Audible Alarms)
- سایر تجهیزات کنترل فرآیند
همچنین میتوان از آن بهعنوان یک منبع تغذیه قابلسوئیچ برای تجهیزات اندازهگیری یا کنترل فرآیند استفاده کرد.
این ماژول دارای قابلیت تشخیص مدار باز و اتصال کوتاه در خط و بار است؛ این قابلیت هم در زمانی که بار روشن (ON) است و هم زمانی که بار خاموش (OFF) است فعال میباشد.
در صورت بروز خطا در تجهیزات فیلد:
- خطا مستقیماً به خروجی دیجیتال PLC (PLC DO) منعکس میشود.
- همچنین با باز شدن خروجی خطا (Fault Output) گزارش میشود.
در صورت نیاز، ورودی Override میتواند بدون توجه به وضعیت سیگنال ورودی، خروجی را خاموش کند.
برای هر کانال، سه نوع مدار خروجی پایه با پارامترهای ایمنی متفاوت قابل انتخاب است تا امکان اتصال و سازگاری با اکثر تجهیزات موجود در بازار فراهم شود.
کاربرد: خروجی دیجیتال
Environmental conditions
- Operating temperature
- temperature limits –40 to +70 °C
- Storage temperature
- temperature limits –45 to +80 °C.
Fault
- Type
- Field device and wiring open circuit or short circuit detection dip-switch selectable. When fault is detected, output is de-energized until normal condition is restored.
- Short output
- load resistance ≤ 50 Ω (≈ 2 mA forcing to detect fault).
- Open output
- load resistance > 10 kΩ.
- Fault signaling
- voltage free NE SPST optocoupled open-collector transistor (output de-energized in fault condition).
- Open-collector/drain rating
- 100 mA @ 35 Vdc (≤ 1.5 V voltage drop).
Input
- Type
- Switch contact, logic level reverse polarity protected.
- Voltage
- 0 V ≤ OFF ≤ 5 V, 20 V ≤ ON ≤ 30 V.
- Current Consumption
- 15 mA @ 24 Vdc, typical.
Isolation
- Test Voltage
- I.S. Out/In 2.5 kV; I.S. Out/Supply 2.5 kV; I.S. Out/Fault-Override 2.5 kV; In/Supply 500 V; In/Fault-Override 500 V; Supply/Fault-Override 500V.
Mounting
- Type
- DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.
- Weight
- about 135 g.
- Connection
- by polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).
- Dimensions
- Width 12.5 mm, Depth 123 mm, Height 120 mm.
Output
- Type
- 45 mA @ 13.0 V (21.0 V no load, 174 Ω series resistance) at terminals 7-10 Out A. 45 mA @ 10.2 V (21.0 V no load, 236 Ω series resistance) at terminals 8-10 Out B. 45 mA @ 8.5 V (21.0 V no load, 275 Ω series resistance) at terminals 9-10 Out C.
- Short circuit current
- ≥ 50 mA, 55 mA typical
- Output diagram
- refer to Instruction Manual.
Override input
- Type
- Override control signal de-energizes output when enabled by dip-switch.
- Voltage
- 0 V ≤ OFF ≤ 5 V, 20 V ≤ ON ≤ 30 V, reverse polarity protected.
- Current Consumption
- 15 mA @ 24 Vdc, typical.
Safety description
- Equipment
- Associated apparatus and non-sparking electrical equipment.
- Safety parameters
- Uo = 24.8 V, Io = 147 mA, Po = 907 mW at terminals 7-10 Out A.
Uo = 24.8 V, Io = 108 mA, Po = 667 mW at terminals 8-10 Out B.
Uo = 24.8 V, Io = 93 mA, Po = 571 mW at terminals 9-10 Out C.
Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.
Supply
- Type
- 24 Vdc nom (20 to 30 Vdc), reverse polarity protected.
- Current Consumption
- 65 mA @ 24 Vdc with 45 mA output, typical.
- Power Dissipation
- 1.1 W @ 24 Vdc with 45 mA output, typical.
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- Datasheet of D5049 ↓
- D5000 Series Common Specifications and Dimensional Drawing ↓
- Instruction Manual D5049 ↓
- EAC safety instruction manual for D5000 series ↓
- EAC safety instruction manual for D5000 series ↓
- TIIS Control Drawing D5048 and D5049 ↓
- Instruction Manual D5000-D5200 Series ↓
- ATEX safety instruction manual for D5000 series ↓
- ATEX safety instruction manual for D5000 series ↓
- CCC Ex safety instruction manual for D5000 series ↓
- CCC Ex safety instruction manual for D5000 series ↓
- Ex safety instruction manual for D5000 series ↓
- INMETRO safety instruction manual for D5000 series ↓
- UL Control Drawing D5048, D5049 ↓
- FM, FM-C Control Drawing D5048, D5049 ↓
- DEKRA ATEX D5000 Series English Certificate ↓
- DEKRA ATEX D5000 Series English Certificate ↓
- D5000/D6000 EAC EMC Declaration of Conformity ↓
- D5000 CCC certificate for China ↓
- CCOE Indian Approval for D5000 Series ↓
- PESO Certificate series D5000 ↓
- CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ↓
- CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ↓
- EAC Ex Certificate for D5000 Series ↓
- Emirates Certificate of Conformity D5000 ↓
- UL-cUL D5040, D5048, D5049 Divisions and Zones ↓
- FM No.3046304-3046304C Certificate D5000 Series ↓
- INMETRO Certificate DNV 13.0109 X for D5000 ↓
- TIIS D5048, D5049 Certificate ↓
- DEKRA IECEx for D5000 Series ↓
- KR Maritime Certificate D5000 Series ↓
- DNV Maritime Certificate TAA00001U0 for D5000 series for website ↓
- TUV IT 25 SIL 0633 SIL Certificate Summary ↓
- EU Declaration of Conformity for D5000 barriers ↓
- EU Declaration of Conformity for D5000 barriers ↓
- Declaration of Conformity G3 compliance ↓
- Declaration of Conformity ↓
| نوع | توضیحات | شماره | مرجع صدور | تاریخ |
|---|---|---|---|---|
| ATEX | DEKRA ATEX D5000 Series English Certificate ( EN | DE ) | BVS 10 ATEX E 113 X | DEKRA | 2022-04-12 |
| EMC | D5000/D6000 EAC EMC Declaration of Conformity ( RU ) | ЕАЭС N RU Д-IT.PA08.B.82326/24 | CONTROL | 2024-09-26 |
| Ex | D5000 CCC certificate for China ( EN ) | 2020322316000978 | NEPSI | 2025-06-23 |
| Ex | CCOE Indian Approval for D5000 Series ( EN ) | P424465 | PESO | 2020-07-28 |
| Ex | PESO Certificate series D5000 ( EN ) | P652307 | PESO | 2026-01-01 |
| Ex | CML D5011, D5014, D5020, D5030, D5031, D5032, D5034, D5048, D5049 certificate for Japan ( EN | JA ) | CML 22JPN1585X | CML | 2025-10-28 |
| Ex | EAC Ex Certificate for D5000 Series ( RU ) | ЕАЭС RU С-IT.AA87.В.01310/24 | CCVE | 2024-06-13 |
| Ex | Emirates Certificate of Conformity D5000 ( EN ) | 25-06-152424/E25-06-158814/NB0002 | SGS | 2024-06-05 |
| Ex | UL-cUL D5040, D5048, D5049 Divisions and Zones ( EN ) | 20160404-E222308 | UL | 2016-04-04 |
| Ex | FM No.3046304-3046304C Certificate D5000 Series ( EN ) | 3046304-3046304C | FM | 2013-04-09 |
| Ex | INMETRO Certificate DNV 13.0109 X for D5000 ( PT ) | DNV 13.0109 X | DNV | 2025-12-10 |
| Ex | TIIS D5048, D5049 Certificate ( JA ) | TC21109 | TIIS | 2024-06-25 |
| IECEx | DEKRA IECEx for D5000 Series ( EN ) | IECEx BVS 10.0072X | DEKRA | 2022-04-14 |
| Maritime | KR Maritime Certificate D5000 Series ( EN ) | MIL20769-EL002 | KR | 2024-06-26 |
| Maritime | DNV Maritime Certificate TAA00001U0 for D5000 series for website ( EN ) | TAA00001U0 | DNV-GL | 2024-04-02 |
| SIL | TUV IT 25 SIL 0633 SIL Certificate Summary ( EN ) | TUV IT 25 SIL 0633 | TUV_SUD | 2025-09-19 |
