مشخصات و کاربرد ایزولاتور بریر مدل D1010D-046 شرکت GMI
ایزولاتور بریر مدل D1010D-046

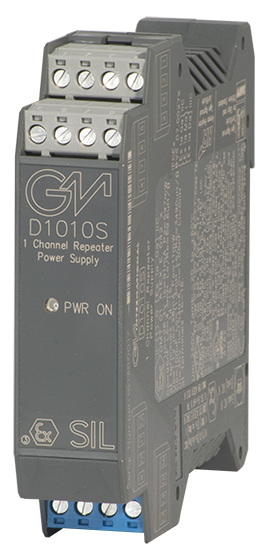

منبع تغذیه ریلی DIN دوکاناله و تککاناله تکرارکننده (Repeater Power Supply)، مدلهای D1010S-046، یک منبع تغذیه DC کاملاً ایزوله را فراهم میکنند تا ترانسمیترهای معمولی ۲ سیمه با خروجی ۴–۲۰ میلیآمپر، یا ترانسمیترهای ۳ یا ۴ سیمه با تغذیه جداگانه و خروجی ۴–۲۰ یا ۰–۲۰ میلیآمپر را که در ناحیه خطرناک (Hazardous Area) نصب شدهاند، تغذیه کنند. همچنین این دستگاه جریان را در یک مدار شناور تکرار میکند تا بتواند یک بار در ناحیه ایمن را راهاندازی کند. این مدار امکان عبور سیگنالهای ارتباطی دوطرفه را نیز برای ترانسمیترهای هوشمند HART® (Smart) فراهم میکند.
کاربرد: ورودی آنالوگ
Environmental conditions
- Operating temperature
- temperature limits -20 to + 60 °C, relative humidity max 95 %.
- Storage temperature
- temperature limits -45 to + 80 °C.
Input
- Type
- 0/4 to 20 mA (separately powered input, voltage drop ≤ 0.9 V) or 4 to 20 mA (2 wire Tx current limited at ≈ 25 mA).
- Transmitter line voltage
- ≥ 15.0 V at 20 mA with max. 20 mVrms ripple on 0.5 to 40 KHz frequency band.
Isolation
- Test Voltage
- I.S. In/Out 1.5 KV; I.S. In/Supply 1.5 KV; I.S. In/I.S. In 500 V; Out/Supply 500 V; Out/Out 500 V.
Mounting
- Type
- EN/IEC60715 TH 35 DIN-Rail.
- Weight
- about 175 g
- Connection
- by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm2.
- Location
- Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4, Class I, Division 2, Groups A, B, C, D Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA T4 installation.
- Protection class
- IP 20.
- Dimensions
- Width 22.5 mm, Depth 99 mm, Height 114.5 mm.
Output
- Type
- 0/4 to 20 mA, on max. 600 Ω load in source mode; V min. 5 V at 0 Ω load V max. 30 V in sink mode, current limited at ≈ 23 mA or 0/1 to 5 V on internal 250 Ω shunt (or 0/2 to 10 V on internal 500 Ω shunt on request).
- Response time
- 50 ms (10 to 90 % step change).
- Output ripple
- ≤ 20 mVrms on 250 Ω communication load on 0.5 to 40 KHz band.
- Frequency response
- 0.5 to 40 KHz bidirectional within 3 dB (HART® and higher frequency protocols).
Performance
- Ref. Conditions
- 24 V supply, 250 Ω load, 23 ± 1 °C ambient temperature.
- Calibration accuracy
- ≤ ± 0.1 % of full scale.
- Linearity error
- ≤ ± 0.05 % of full scale.
- Supply voltage influence
- ≤ ± 0.05 % of full scale for a min to max supply change.
- Load influence
- ≤ ± 0.05 % of full scale for a 0 to 100 % load resistance change.
- Temperature influence
- ≤ ± 0.01 % on zero and span for a 1 °C change.
Safety description
- Equipment
- Associated apparatus and non-sparking electrical equipment
- Safety parameters
- Uo/Voc = 26.3 V, Io/Isc = 91 mA, Po/Po = 597 mW at terminals 14-15, 10-11. Uo/Voc = 1.1 V, Io/Isc = 38 mA, Po/Po = 11 mW at terminals 15-16, 11-12. Ui/Vmax = 30 V, Ii/Imax = 104 mA, Ci = 1.05 nF, Li = 0 nH at terminals 15-16, 11-12. Um = 250 Vrms, -20 °C ≤ Ta ≤ 60 °C.
Supply
- Type
- 24 Vdc nom (20 to 30 Vdc) reverse polarity protected, ripple within voltage limits ≤ 5 Vpp.
- Current Consumption
- 115 mA @24V with 20 mA output typical.
- Power Dissipation
- 1.9 W with 24 V supply voltage and 20 mA output typical.
- Max. power consumption
- 3.7 W at 30 V supply voltage and short circuit condition
- Datasheet of D1010-046 ↓
- D1000 Series Common Specifications and Dimensional Drawing ↓
- Instruction Manual D1010-046 ↓
- Instruction Manual D1000 Series ↓
- Instruction Manual D1000 Series ↓
- Ex safety instruction manual for D1000 series ↓
- Ex safety instruction manual for D1000 series ↓
- DEKRA ATEX D1000 Series English Certificate ↓
- DEKRA ATEX D1000 Series English Certificate ↓
- IMQ Zone 2 Applications D1000 Series Certificate ↓
- IMQ IECEx Zone 2 Applications D1000 Series Certificate ↓
- DEKRA IECEx for D1000 Series ↓
- KR Maritime Certificate D1000 Series ↓
- DNV Maritime Certificate TAA00002BM for D1000 Series ↓
- Metrological Certificate Russia for D1000 Series ↓
- TUV IT 25 SIL 0632 SIL Certificate Summary ↓
- EU Declaration of Conformity D1000 series ↓
- EU Declaration of Conformity D1000 series ↓
- EU Declaration of Conformity for D1000 series ↓
- EU Declaration of Conformity for D1000 series ↓
- Declaration of G3 compliance for D1000_PSD1000-PSD1001-PSD1001C-PSD1004-PSD1220-PSD1220-098 SERIES ↓
| نوع | توضیحات | شماره | مرجع صدور | تاریخ |
|---|---|---|---|---|
| ATEX | DEKRA ATEX D1000 Series English Certificate ( EN | DE ) | DMT 01 ATEX E 042 X | DEKRA | 2022-04-25 |
| ATEX | IMQ Zone 2 Applications D1000 Series Certificate ( EN ) | IMQ 09 ATEX 013 X | IMQ | 2022-05-03 |
| IECEx | IMQ IECEx Zone 2 Applications D1000 Series Certificate ( EN ) | IECEx IMQ 13.0011X | IMQ | 2022-05-03 |
| IECEx | DEKRA IECEx for D1000 Series ( EN ) | IECEx BVS 07.0027X | DEKRA | 2022-05-30 |
| Maritime | KR Maritime Certificate D1000 Series ( EN ) | MIL20769-EL001 | KR | 2022-07-04 |
| Maritime | DNV Maritime Certificate TAA00002BM for D1000 Series ( EN ) | TAA00002BM | DNV-GL | 2024-04-05 |
| Metrological | Metrological Certificate Russia for D1000 Series ( RU ) | 64283-11 | ROSSTANDART | 2021-03-10 |
| SIL | TUV IT 25 SIL 0632 SIL Certificate Summary ( EN ) | TUV IT 25 SIL 0632 | TUV_SUD | 2025-09-19 |
